Atom: a compact guard-locking solution for safe access to machinery

Have the peace of mind that comes with knowing your employees are protected by a safe and robust guard-locking solution you can fully customize. With high-coded RFID technology, Atom supports millions of different coding combinations and is classed as “high” coding by ISO 14119, making it extremely safe and flexible.

What is Atom?

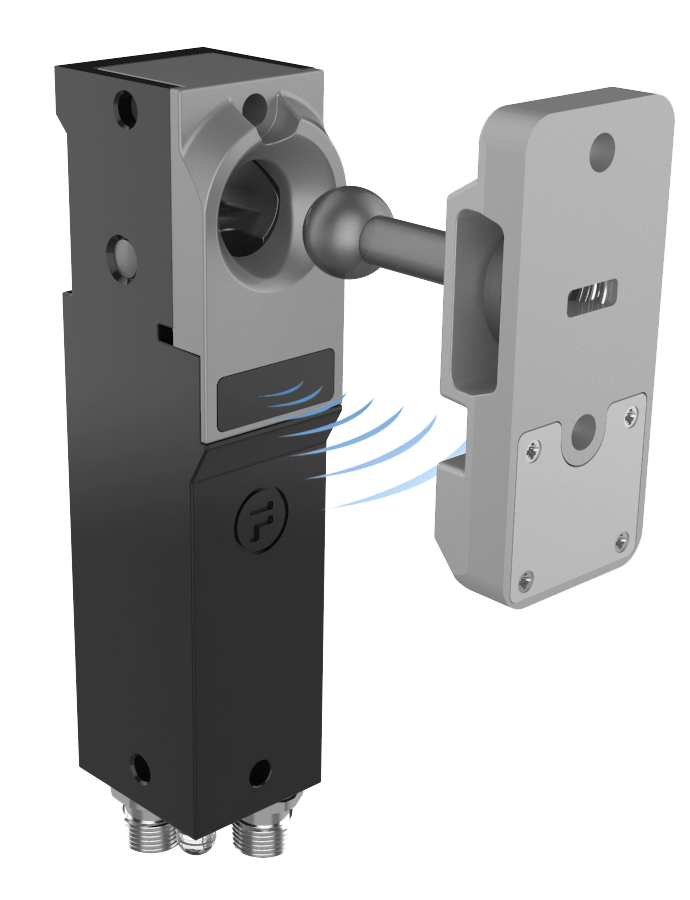

Atom is a compact and ultra-robust RFID high-coded solenoid interlock that we have added to our product portfolio. Suitable for use in applications up to PLe (Cat.4), Atom provides a discreet, easy-to-install solution with monitored inputs and OSSD outputs.

High-Coded RFID

Atom has a high-coded RFID technology that provides millions of different coding combinations and is classed as “high” coding by ISO 14119. The uniquely coded actuator helps to create a tamper-proof system that prevents unauthorized access.

OSSD Outputs

Atom supports OSSD output (Output Signal Switching Device) with daisy-chain connection that enables ease of wiring installation and prevents fault masking powered from the same supply. Each Atom unit in series draws current and causes a voltage drop on the power line.

High Mechanical Misalignment

The Atom actuator can pivot and self-centre to operate under a high degree of misalignment. High maximum retention force of up to 8kN. The pivoting mechanism is particularly well suited to small radius hinged doors and hatches.

Features of Atom

• Solenoid controlled interlock
• High-coded RFID
• Robust actuator design with high locking and retention force (8kN)
• Ultra compact mounting footprint, easy to mount with 4 x M5 screws
• Safeguarding application up to PLe and SIL3 rating
• Provides OSSD outputs with daisy-chain connection, connects up to 8 Atoms in series
• High mechanical misalignment and open head to prevent dust, dirt and corrosion from impacting performance
• Sealed to IP65 and IP67
